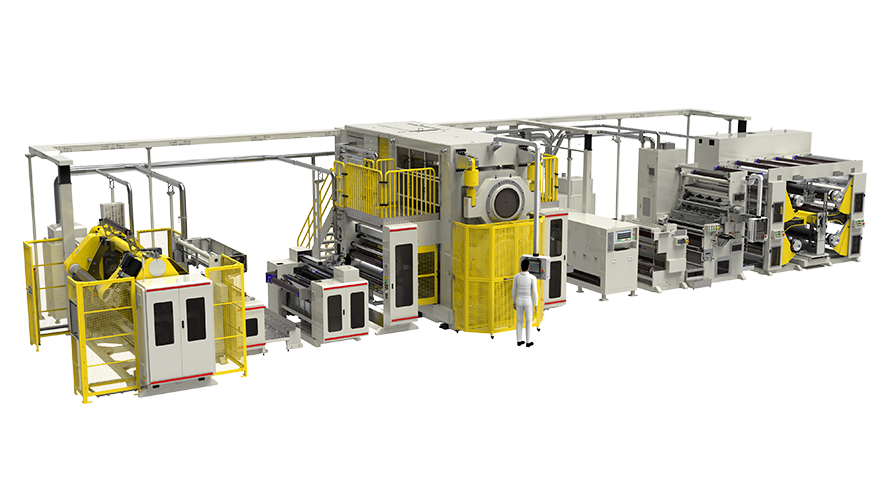

Calendering and Slitting Integrated Machine
Roller surface width：
Max.1.8m
Production speed:
120m/min
The machine is capable of automatic rewinding and unwinding, employing high-speed online roller cleaning technology. The production speed can reach up to 120m/min, with a maximum roller width of 1500mm.
Equipment Parameters
| Item | 850Series | 950Series | 1050Series | 1200Series | 1500Series | 1800Series |
|---|---|---|---|---|---|---|
Roller Width（mm） | 850 | 950 | 1050 | 1200 | 1500 | 1800 |
| Electrode Width（mm） | Max.750 | Max.850 | Max.950 | Max.1100 | Max.1400 | Max.1700 |
| Production Speed（m/min） | Max.120 | |||||
Calendering Thickness Accuracy (um） | ±1.5 | |||||
Slitting Width Accuracy （mm） | ±0.3 | |||||
| Rewinding Alignment （mm） | ±0.5 | |||||
| Correction Accuracy （mm） | ±0.1 | |||||
