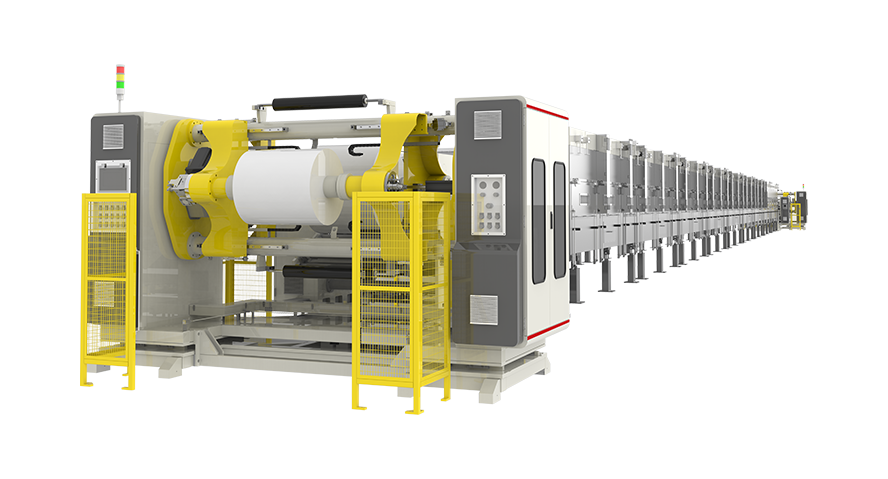

Single-laye Coating Machine
Coating Width :
Max.1350mm
Coating Speed :
Max.120m/min
The equipment is suitable for coating both power batteries and digital batteries. It is based on advanced technologies, including dual closed-loop control of speed and torque, flow field analysis, large-diameter unwinding tension and nip force closed-loop control, high-efficiency and energy-saving heat exchangers, high-speed gap coating, and roller-to-roller control, achieving world-leading performance.
With excellent performance indicators such as single-side surface density precision of ±1.2%, double-side surface density precision of ±1.0%, COV ≤ 0.3%, and CPK > 1.67, it enables a high-precision, highly controllable, and stable coating process.
Equipment Parameters
| Item | 750Series | 850Series | 1000Series | 1400Series | 1600Series |
|---|---|---|---|---|---|
Roller Width（mm） | 750 | 850 | 1000 | 1400 | 1600 |
| Coating Width（mm） | Max.680 | Max.700 | Max.800 | Max.120 | Max.1350 |
| Coating Speed（m/min） | Max.120 | ||||
| Unwinding Roll Diameter（mm） | Max.800 | ||||
Rewinding Roll Diameter（mm） | Max.1200 | ||||
