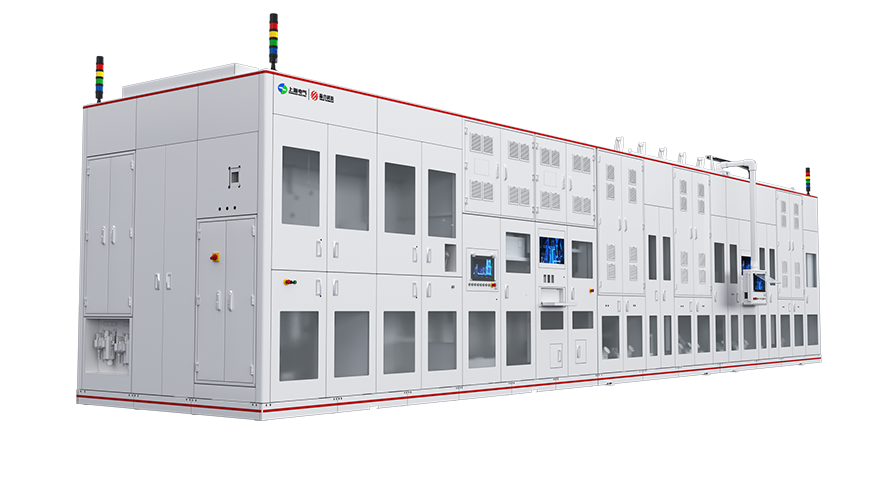

Ultra-high speed multi-station cutting and stacking machine
Specifications:
Compatible with three or four workstaions
Efficiency:
0.15s/pcs
cathode and anode unwinding, automatic splicing, cutting, size inspection, surface defect inspection, NG electrode rejection, 3/4-station Z-type stacking, tapping, hot pressing, short-circuit test, and loading into trays.
Equipment Parameters
Main models | YMSA400T | YMSA600T |
|---|---|---|
Equipment size (mm) | 13500(L) *4500(W)*2800(H) | 15000(L) *5000(W)*2800(H) |
Cell height (mm) | 150~400 | 300~600 |
Cell width (mm) | 80~300 | 80~150 |
Cell thickness (mm) | 5~25 | 5~25 |
Efficiency | 0.1s/pcs | 0.15s/pcs |
Related Products
-
Notching and stacking machine (590 series)
1 cathode/1 anode unwinding, notching of tabs, CCD inspection after cutting, effective rejection of unqualified electrodes
-
Laser notching and stacking integrated machine
This equipment is suitable for the forming process of the cathode and anode electrode of lithium battery
