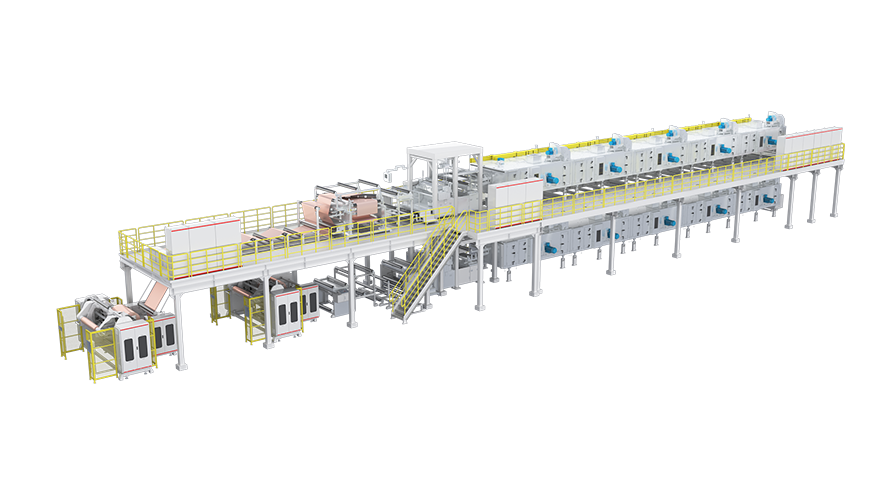

Double-Layer Super-E Coating Machine
Roller surface width:
Max.1800mm
Coating Speed:
Max.120m/min
The new E-shaped electrode layout allows the electrode to undergo two drying processes within a single oven. Compared to traditional coating machines, this reduces the length by over 35%, doubles the oven efficiency, reduces the equipment footprint by 35%, saves over 35% in energy consumption, and decreases the battery cell plant's floor space by 8%. Additionally, maintenance personnel requirements are reduced by 30%.
Combined with the A/B side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. This reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in equipment.
Equipment Parameters
| Item | 850Series | 1000Series | 1400Series | 1600Series | 1800Series |
|---|---|---|---|---|---|
Roller Width（mm） | 850 | 1000 | 1400 | 1600 | 1800 |
| Coating Width（mm） | Max.700 | Max.800 | Max.120 | Max.1350 | Mzx.1550 |
| Coating Speed（m/min） | Max.120 | ||||
| Unwinding Roll Diameter（mm） | Max.800 | ||||
Rewinding Roll Diameter（mm） | Max.1200 | ||||
Related Products
-
Single-layer Coating Machine
The equipment is suitable for coating both power batteries and digital batteries.
-
Calendering and Slitting Integrated Machine
The machine is capable of automatic rewinding and unwinding, employing high-speed online roller cleaning technology. The production speed can reach up to 120m/min, with a maximum roller width of 1500mm.
